Catalog Items:

Mounting Assemblies 2

Post Top Mounted Vehicular Signal -

1 Signal Head

Includes:

TV-1

Unistrut Top Mounted Vehicular Signal- 1 Head with Terminal Compartment

Includes:

UTV - 1 - T

TV - 1 - T

Top Mounted Vehicular Signal - 1 Head with Terminal Compartment

Includes:

  • TSH 0031 Post top mounted with terminal compartment, 2 way, with set screws

  • TSH 1101 Terminal compartment door

  • TSH 2028 Terminal compartment gasket

  • TSH 0567   12-position Terminal block with wiring

  • TSH 0174 Surlock elbow

  • TSH 0172 Standard elbow

  • TSH 0531 Neoprene washer

  • TSH 0533 Plated steel washer

  • TSH 0571 Long locknipple 1-1/2"

  • TSH 0572 Short locknipple 1-1/8"

  • TSH 0173 Reamed elbow with set screws

  • TSH 0501 Ornamental cap

  • Center pipe (length varies according to signal heads; standard is 34-1/2")

  • 12" pipe nipple

  • 11-1/2" pipe nipple

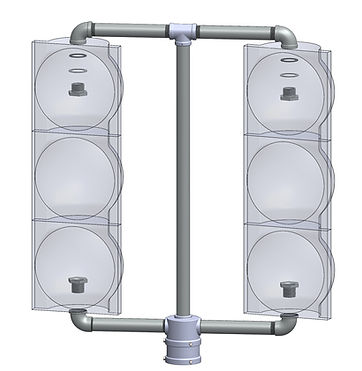

TV - 2

Top Mounted Vehicular Signal -

2 Signal Heads Inline

Includes:

  • TSH 0051 Post top center mount, non-serrated, 2 side ports, 180 degrees with set screws

  • (2) TSH 0174 Surlock elbow

  • (2) TSH 0172 Standard elbow

  • (2) TSH 0531 Neoprene washer

  • (2) TSH 0533 Plated steel washer

  • (2) TSH 0571 Long locknipple 1-1/2"

  • (2) TSH 0572 Short locknipple 1-1/8"

  • TSH 0202 Reamed tee with set screws

  • Center pipe (length varies according to signal heads; standard is 43-1/2")

  • (2) 12" pipe nipples

  • (2) 11-1/2" pipe nipples

UTV - 2 - T

Unistrut Top Mounted Vehicular Signal - 2 Heads with Terminal Compartment

Includes:

TV - 2 - T

Top Mounted Vehicular Signal - 2 Head with Terminal Compartment

Includes:

  • TSH 0031 Post top mounted with terminal compartment, 2 way, with set screws

  • TSH 1101 Terminal compartment door

  • TSH 2028 Terminal compartment gasket

  • TSH 0567   12-position Terminal block with wiring

  • (2) TSH 0174 Surlock elbow

  • (2) TSH 0172 Standard elbow

  • (2) TSH 0531 Neoprene washer

  • (2) TSH 0533 Plated steel washer

  • (2) TSH 0571 Long locknipple 1-1/2"

  • (2) TSH 0572 Short locknipple 1-1/8"

  • TSH 0202 Reamed tee with set screws

  • Center pipe (length varies according to signal heads; standard is 34-1/2")

  • (2) 12" pipe nipples

  • (2) 11-1/2" pipe nipples

TV - 3 - T

TV - 4 - T

TP - 1

TP - 1 - T

TP - 2 - T

Top Mounted Vehicular Signal - 3 Head with Terminal Compartment

Includes:

  • TSH 0038 Post top mounted with terminal compartment, 3 way, with set screws

  • TSH 1101 Terminal compartment door

  • TSH 2028 Terminal compartment gasket

  • TSH 0567   12-position Terminal block with wiring

  • (3) TSH 0174 Surlock elbow

  • (3) TSH 0172 Standard elbow

  • (3) TSH 0531 Neoprene washer

  • (3) TSH 0533 Plated steel washer

  • (3) TSH 0571 Long locknipple 1-1/2"

  • (3) TSH 0572 Short locknipple 1-1/8"

  • TSH 0207 Reamed tee with side outlet and set screws

  • Center pipe (length varies according to signal heads; standard is 34-1/2")

  • (3) 12" pipe nipples

  • (3) 11-1/2" pipe nipples

Top Mounted Vehicular Signal - 4 Head with Terminal Compartment

Includes:

  • TSH 0031 Post top mounted with terminal compartment, 2 way, with set screws

  • TSH 1101 Terminal compartment door

  • TSH 2028 Terminal compartment gasket

  • TSH 0567   12-position Terminal block with wiring

  • (4) TSH 0174 Surlock elbow

  • (4) TSH 0172 Standard elbow

  • (4) TSH 0531 Neoprene washer

  • (4) TSH 0533 Plated steel washer

  • (4) TSH 0571 Long locknipple 1-1/2"

  • (4) TSH 0572 Short locknipple 1-1/8"

  • (4) TSH 0201 Standard tee

  • TSH 0202  Reamed tee with set screws

  • Center pipe (length varies according to signal heads; standard is 34-1/2")

  • (10) 12" pipe nipples

  • (2) 11-1/2" pipe nipples

Top Mounted Pedestrian Signal - 1 Signal Head

Includes:

Top Mounted Pedestrian Signal - 1 Head with Terminal Compartment

Includes:

  • TSH 0031 Post top mounted with terminal compartment, 2 way, with set screws

  • TSH 1101 Terminal compartment door

  • TSH 2028 Terminal compartment gasket

  • TSH 0567   12-position Terminal block with wiring

  • TSH 0172 Standard elbow

  • TSH 0173 Reamed elbow with set screws

  • TSH 0174 Surlock elbow

  • TSH 0531 Neoprene washer

  • TSH 0533 Plated steel washer

  • TSH 0571 Long locknipple 1-1/2"

  • TSH 0572 Short locknipple 1-1/8"

  • TSH 0501 Short ornamental cap

  • Center pipe 9-1/4"

  • 12" pipe nipple

  • 11-1/2" pipe nipple

Top Mounted Pedestrian Signal - 2 Head with Terminal Compartment

Includes:

  • TSH 0031 Post top mounted with terminal compartment, 2 way, with set screws

  • TSH 1101 Terminal compartment door

  • TSH 2028 Terminal compartment gasket

  • TSH 0567   12-position Terminal block with wiring

  • (2) TSH 0174 Surlock elbow

  • (2) TSH 0172 Standard elbow

  • (2) TSH 0531 Neoprene washer

  • (2) TSH 0533 Plated steel washer

  • (2) TSH 0571 Long locknipple 1-1/2"

  • (2) TSH 0572 Short locknipple 1-1/8"

  • TSH 0202 Reamed tee with set screws

  • Center pipe 9-1/4"

  • (2) 12" pipe nipples

  • (2) 11-1/2" pipe nipples

TSH 2009

Balance Adjuster Assembly

Includes:

Span Wire Mount - Cluster

Includes:

  • All parts associated with assembly S149 or L149 (see above, please specify when ordering)

  • TSH 0158 Wire entrance hanger

  • TSH 0128 Insulator bushing 1-1/4" NPS

  • (3) TSH 0531 Neoprene washer

  • TSH 0533 Steel washer

  • (2) TSH 0551 Conduit locknuts

  • (2) TSH 0556 Locknut with set screw

  • NPS All thread nipple 2" long

  • TSH 0521 Serrated locking ring, 72 teeth, full pin

  • TSH 0571 Long lock nipple

  • TSH 0115T Tri-stud 2-way cluster bracket

  • TSH 0115C Bracket cover plate

  • (2) TSH 0258 Clamp washer for tri-stud

  • (6) Lockwashers and nuts for tri-stud

  • TSH 0130 Two-way tie brace

SW - 3

Span Wire Mount - 3 Signal Heads

Includes:

SW - 4

Span Wire Mount - 4 Signal Heads

Includes:

SW - Cluster

LT-2-T

Left Turn Vehicular Mount with Terminal Compartment

Includes:

  • TSH 0031 Post top mounted with terminal compartment two way with set screws

  • TSH 1101 Terminal compartment door

  • TSH 2028 Terminal compartment gasket

  • TSH 0567   12-position Terminal block with wiring

  • TSH 0173 Reamed elbow with set screws

  • (2) TSH 0172 Standard elbow

  • (2) TSH 0531 Neoprene washer

  • (2) TSH 0533 Steel plated washer

  • (2) TSH 0572 Short locknipple 1-1/8"

  • (2) TSH 0571 Long locknipple 1-1/2"

  • (2) TSH 0174 Surlock elbow

  • TSH 0152 Pole plate

  • (2) 6" nipples

  • (2) 6-1/2" nipples

  • Center pipe (standard 34-1/2")

Left Turn Vehicular Mount Offset

Includes:

Left Turn Vehicular Mount/Center

Includes:

  • TSH 0051 Post top center mount, non-serrated, 2 ports, 180 degrees

  • (2) TSH 0172 Standard elbow

  • TSH 0173 Reamed elbow

  • (2) TSH 0174 Surlock elbow

  • (2) TSH 0572 Short locknipple 1-1/8"

  • (2) TSH 0571 Long locknipple 1-1/2"

  • (2) TSH 0531 Neoprene washer

  • (2) TSH 0533 Plated washer

  • TSH 0152 Pole plate

  • (2) 6" nipples

  • (2) 6-1/2" nippple

  • Center pipe (standard is 43-1/2")

LT-2-B

TP - 2

Top Mounted Pedestrian Signal - 2 Heads

Includes:

  • TSH 0051 Post top center mount, non-serrated, 2 ports, 180 degrees with set screws

  • (2) TSH 0174 Surlock elbow

  • (2) TSH 0172 Standard elbow

  • (2) TSH 0531 Neoprene washer

  • (2) TSH 0533 Plated steel washer

  • (2) TSH 0571 Long locknipple 1-1/2"

  • (2) TSH 0572 Short locknipple 1-1/8"

  • TSH 0202 Reamed tee with set screws

  • Center pipe 18-1/4"

  • (2) 12" pipe nipples

  • (2) 11-1/2" pipe nipples

Tether Assembly for Backplates

Includes:

  • TSH 0571 Long locknipple 1-1/2"

  • TSH 0576 Serrated coupling

  • Extension nipple with clamp

  • (2) 5/16" x 1-1/4" Bolts, stainless steel

  • (2) 5/16" Lockwashers, stainless steel

  • (2) 5/16" Locknuts with nylon inserts,  stainless steel

SW - 1

Span Wire Mount - 1 Signal Head

Includes:

SW-S149

10" Span Wire Hanger Assembly

Includes:

  • TSH S121:  4-1/2" Span wire clevis

  • (2) TSH S126U:  U-bolt 3/8" with nuts and lockwashers, plated

  • TSH 0127 Clevis pin with cotter pin, plated

  • TSH S124 Cable lock bar

TSH 2345

LT-2-A
















TSH 1280

Disconnect hanger assembly span wire assembly

Disconnect Hanger Assembly- 12 position

  •  Span Wire Assembly 10" (L149) or 4-1/2" (S149)

  • TSH SP51 Adjustable hanger top

  • TSH SP54 Extension bar (Specify length up to 6')

  • (2) TSH SP50 Tri-stud tether

  • TSH SP52 Adjustable hanger block

  • TSH 0025 Disconnect terminal compartment

  • (2) TSH 0129P Press type insulator bushing

  • TSH 1125 Door for disonnect compartment

  • TSH 0567 Terminal block, 12 position

  • TSH 3312 Wire harness, 12 position

  • TSH 0125T Tri-stud flange

  • TSH 0258 Clamp washer with nuts and lockwashers

  • TSH 0503 Long ornamental cap

  • TSH 0551 Conduit locknut



TSH 1281

Disconnect Hanger Assembly- 18 position

  • Span Wire Assembly 10" (L149) or 4-1/2" (S149)

  • TSH SP51 Adjustable hanger top

  • TSH SP54 Extension bar (Specify length up to 6')

  • TSH SP50 Tri-stud tether

  • TSH SP52 Adjustable hanger block

  • (2) TSH 0129P Press type insulator bushing

  • TSH 0025 Disconnect terminal compartment

  • TSH 1125 Door for disonnect compartment

  • TSH 0567 Terminal block, 12 position

  • TSH 0566 Terminal block, 6 position

  • TSH 3318 Wire harness, 18 position

  • TSH 0125T Tri-stud flange

  • TSH 0258 Clamp washer with nuts and lockwashers

  • TSH 0503 Long ornamental cap

  • TSH 0551 Conduit locknut











SW-L149

10" Span Wire Hanger Assembly

Includes:

Choose one:

(2) TSH 0126 J-bolt with nuts, plated

OR

(2) TSH 0126U U-bolt with nuts, lockwashers



TSH 2346

Tether Assembly for No Backplates

Includes:​

  • TSH SP50 Adjustable hanger bottom

  • TSH SP52 Adjustable hanger block

  • TSH 0258 Clamp washer with nuts and lockwashers

  • (2) 5/16" Bolts with lockwashers and nuts


Disconnect hanger assembly 18 position span wire assembly

TV-1 with 0054 and side port

Post Top Mounted Vehicular Signal -

1 Signal Head

Includes:

  • TSH 0054 Post top mounted, serrated, offset mount, 1 side port

  • TSH 0571 Long lock nipple 1-1/2"

  • TSH 0572 Short lock nipple 1-1/8"

  • (2) TSH 0172 Standard elbow

  • TSH 0173 Reamed elbow

  • TSH 0531 Neoprene washer

  • TSH 0533 Steel washer

  • 6" pipe nipple

  • 8-1/2" pipe nipple

  • Center pipe (length varies according to signal heads; standard is 40")


SW-1 close view
SW-1

Span Wire Mount - 2 Signal Heads

Includes:

SW - 2


SW-2 close view
SW-2
All colors available.
Materials: aluminum, bronze, iron, galvanized iron
Screws and fasteners are available in zinc or stainless steel.
Standard and custom sizes for nipples.
