Framework Mounting Assemblies

Catalog Items: Mounting Assemblies

All colors available.

Materials: aluminum, bronze, iron, galvanized iron

Screws and fasteners are available in zinc or stainless steel.

Standard and custom sizes for nipples.

MAT

Mast Arm Mounted Vehicular Signal Top Attached

Includes:

TSH 0071 Mast Arm Plumbizer w/ set screws
3/8" x 4" Safety bolt
(3) 3/8" NC set screws
TSH 0531 Neoprene washer
TSH 0533 Plated steel washer
TSH 0571 Long locknipple
TSH 0551 Locknut
TSH 0503 Long ornamental cap

Available with TSH 0072 Mast Arm Plumbizer Double Ring for 6 set screws. *Oregon approved

MAT-Cluster

Mast Arm Mounted Vehicular Signal Top Attached- Multi-faced

Includes:

TSH 0071 Mast Arm Plumbizer w/ set screws
3/8" x 4" Safety bolt
(2) TSH 0571 Long locknipple 1-1/2"
(3) TSH 0531 Neoprene washers
(2) TSH 0551 Locknut
(2) TSH 0533 Steel washer
TSH 0115T Tri-stud 2-way cluster bracket
TSH 0115C Bracket cover plate
(2) TSH 0258 Clamp washer for tri-stud
(6) Lockwashers and nuts for tri-stud
TSH 0130 2-way tie brace

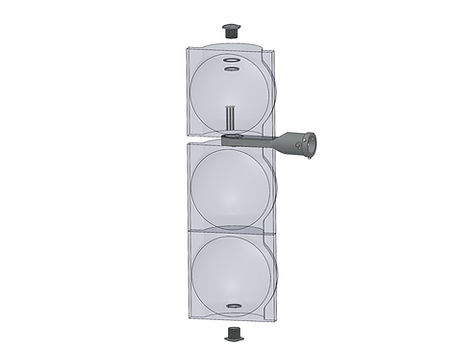

MAS

Mast Arm Side Mounted Vehicular Signal

Includes:

TSH 0081 Mast Arm Elevator Plumbizer with set screws
3/8" x 4" Safety Bolt
(2) TSH 0503 Long ornamental caps
TSH 0531 Neoprene washer
(2) TSH 0551 Locknut

MAS-5 SEC Cluster

Mast Arm Side Mounted Vehicular Signal

Multi-faced Section Cluster

Includes:

TSH 0081 Mast Arm Elevator Plumbizer with set screws
3/8" x 4" Safety bolt
TSH 0571 Long locknipple 1-1/2"
(3) TSH 0531 Neoprene washers
(3) TSH 0551 Locknut
TSH 0115T Tri-stud 2-way cluster bracket
TSH 0115C Bracket cover plate
(4) TSH 0258 Clamp washer for tri-stud
(6) Lockwashers and nuts for tri-stud
TSH 0130 2-way tie brace

Mast Arm Clevis Mount

Includes:

TSH 0076 Clevis type hanger
TSH 0123 Clevis with cauder pins
TSH 0158 Wire entrance hanger
(2) TSH 0128 Insulator bushing
TSH 0571 Long lock nipple
TSH 0531 Neoprene washer
TSH 0533 Steel plated washer
TSH 0551 Locknut
TSH 0503 Long ornamental cap
TSH 0521 Surlock ring

SV-1

SV-1 Hub
SV-1 Band On
SV-1 Bolt-On

Side Mounted Vehicular Signal, 1 Head

Pole plate options (choose 1):

Hub style TSH 0098, 0099
designed for 6" diameter solid pole
Band-on (2) TSH 0150
Bolt-on TSH 0151 with cable guide
comes with TSH 0152

Includes:

(2) 12" nipples
TSH 0172 Standard elbow
TSH 0174 Surlock elbow
TSH 0531 Neoprene washer
TSH 0533 Steel plated washer
(2) TSH 0571 Long lock nipple 1-1/2"

SV-2A

SV-2 Hub
SV-2 Band-On
SV-2 Bolt-On

Side Mounted Vehicular Signal, 2 Head

Pole plate options (choose 1):

Hub style TSH 0098, 0099
designed for 6" diameter solid pole
Band-on (2) TSH 0150
Bolt-on TSH 0151 with cable guide
comes with TSH 0152

Includes:

(2) 12" nipples
(2) 16" nipples
TSH 0201 Standard tee
TSH 0204 Tee, serrated on outlet
TSH 0172 Standard elbow
TSH 0174 Surlock elbow
(2) TSH 0531 Neoprene washer
(2) TSH 0533 Steel plated washer
(4) TSH 0571 Long lock nipple 1-1/2"

SV-1-TA

Side Mounted Vehicular Signal, 1 Head with Terminal Compartment

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
TSH 0172 Standard elbow
TSH 0173 Reamed elbow with set screws
TSH 0174 Surlock elbow
TSH 0501 Short ornamental cap
TSH 0531 Neoprene washer
TSH 0533 Steel plated washer
(2) TSH 0571 Long lock nipple 1-1/2"
11-1/2" nipple
12" nipple
34" center pipe

SV-2-TA

Side Mounted Vehicular Signal, 2 Head Inline

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(2) TSH 0174 Surlock elbow
(2) TSH 0172 Standard elbow
TSH 0202 Reamed tee with set screws
(4) TSH 0571 Long lock nipple 1-1/2"
(2) TSH 0531 Neoprene washer
(2) TSH 0533 Steel plated washer
(2) 11-1/2" nipple
(2) 12" nipple
34" center pipe

SV-2-TB

Side Mounted Vehicular Signal, 1 Head Inline,

1 Head Back of Door

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(2) TSH 0174 Surlock elbow
(4) TSH 0172 Standard elbow
TSH 0202 Reamed tee with set screws
(4) TSH 0571 Long lock nipple 1-1/2"
(2) TSH 0531 Neoprene washer
(2) TSH 0533 Steel plated washer
(2) 11-1/2" nipple (standard)
(2) 12" nipple (standard)
(2) 16" nipple (standard)
34" center pipe (standard)

SV-2-TC

Side Mounted Vehicular Signal, 2 Head Inline on side of compartment

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
TSH 0172 Standard elbow
TSH 0173 Reamed elbow with set screws
TSH 0174 Surlock elbow
TSH 0201 Standard tee
TSH 0204 Surlock tee
TSH 0501 Short ornamental cap
(4) TSH 0571 Long lock nipple 1-1/2"
(2) TSH 0531 Neoprene washer
(2) TSH 0533 Plated washer
11-1/2" nipple (standard)
12" nipple (standard)
(2) 16" nipple (standard)
34" center pipe (standard)

SV-2-TD

Side Mounted Vehicular Signal, 2 Head

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(2) TSH 0172 Standard elbow
TSH 0173 Reamed elbow with set screws
(2) TSH 0174 Surlock elbow
(2) TSH 0201 Standard tee
TSH 0501 Short ornamental cap
(4) TSH 0571 Long lock nipple 1-1/2"
(2) TSH 0531 Neoprene washer
(2) TSH 0533 Plated washer
11-1/2" nipple (standard)
(3) 12" nipples (standard)
(2) 16" nipple (standard)
34" center pipe (standard)

SV-3-TA

Side Mounted Vehicular Signal, 3 Head Inline

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(2) TSH 0172 Standard elbow
(2) TSH 0174 Surlock elbow
TSH 0201 Standard tee
TSH 0202 Reamed tee with set screws
TSH 0204 Surlock tee
(6) TSH 0571 Long lock nipple 1-1/2"
(3) TSH 0531Neoprene washer
(3) TSH 0533 Plated washer
(2) 11-1/2" nipple (standard)
(2) 12" nipple (standard)
(2) 16" nipple (standard)
34" center pipe (standard)

SV-3-TB

Side Mounted Vehicular Signal, 2 Head Inline,

1 Head Back of Door

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(3) TSH 0172 Standard elbow
(3) TSH 0174 Surlock elbow
(2) TSH 0201 Standard tee
TSH 0202 Reamed tee with set screws
(6) TSH 0571 Long lock nipple 1-1/2"
(3) TSH 0531 Neoprene washer
(3) TSH 0533 Plated washer
(2) 11-1/2" nipple (standard)
(4) 12" nipple (standard)
(2) 16" nipple (standard)
34" center pipe (standard)

SV-3-TC

Side Mounted Vehicular Signal, 1 Head Inline, 1 Head Back of Door, 1 Head Front of Door

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(3) TSH 0172 Standard elbow
(3) TSH 0174 Surlock elbow
(2) TSH 0201 Standard tee
TSH 0202 Reamed tee with set screws
(6) TSH 0571 Long lock nipple 1-1/2"
(3) TSH 0531 Neoprene washer
(3) TSH 0533 Plated washer
(2) 11-1/2" nipple (standard)
(6) 12" nipple (standard)
34" center pipe (standard)

SV-4-TA

Side Mounted Vehicular Signal, 4 Head Inline

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(2) TSH 0172 Standard elbow
(2) TSH 0174 Surlock elbow
(2) TSH 0201 Standard tee
TSH 0202 Reamed tee with set screws
(2) TSH 0204 Surlock tee
(8) TSH 0571 Long lock nipple 1-1/2"
(4) TSH 0531 Neoprene washer
(4) TSH 0533 Plated washer
(2) 11-1/2" nipple (standard)
(2) 12" nipple (standard)
(4) 16" nipple (standard)
34" center pipe (standard)

SV-4-TB

Side Mounted Vehicular Signal, 2 Heads Inline, 1 Back of door, 1 Front of door

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(4) TSH 0172 Standard elbow
(4) TSH 0174 Surlock elbow
(4) TSH 0201 Standard tee
TSH 0202 Reamed tee with set screws
(8) TSH 0571 Long lock nipple 1-1/2"
(4) TSH 0531 Neoprene washer
(4) TSH 0533 Plated washer
(2) 11-1/2" nipple (standard)
(6) 12" nipple (standard)
(4) 16" nipple (standard)
34" center pipe (standard)

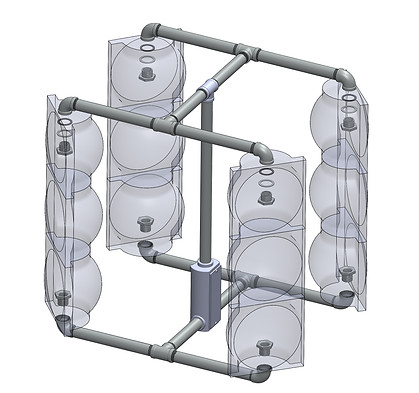

SV-4-TC

Side Mounted Vehicular Signal, 2 Heads Back of Door, 2 Heads Front of Door

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(4) TSH 0172 Standard elbow
(4) TSH 0174 Surlock elbow
(4) TSH 0201 Standard tee
TSH 0202 Reamed tee with set screws
(8) TSH 0571 Long lock nipple 1-1/2"
(4) TSH 0531 Neoprene washer
(4) TSH 0533 Plated washer
(2) 11-1/2" nipple (standard)
(10) 12" nipple (standard)
34" center pipe (standard)

USV-1-T

Unistrut Side Mounted Vehicular Signal with Terminal Compartment

Includes:

TSH 0003 Unistrut terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
TSH 0091 Unistrut mount arm
TSH 0106 Cover
(2) TSH 0503 Long ornamental cap
(2) TSH 0551 Locknut
TSH 0531 Neoprene washer
(3) 1/4" x 3-1/2" Mounting bolts
(2) TSH 0258 Clamp washer

USV-2-T

Unistrut Side Mounted Vehicular Signal, 2 Face with Terminal Compartment

Includes:

TSH 0003 Unistrut Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(2) TSH 0091 Unistrut mount arm
(4) TSH 0503 Long ornamental cap
(4) TSH 0551 Locknut
(2) TSH 0531 Neoprene washer
(6) 1/4" x 3-1/2" Mounting bolts
(4) TSH 0258 Clamp washers

SP - 1

SP-1 Hub
SP-1 Band-On
SP-1 Bolt-On

Side Mounted Pedestrian Signal - 1 Face

Pole plate options (choose 1):

Hub style TSH 0098, 0099
designed for 6" diameter solid pole
Band-on (2) TSH 0150
Bolt-on TSH 0151 with cable guide
comes with TSH 0152

Includes:

(2) 12" nipples
TSH 0172 Standard elbow
TSH 0531 Neoprene washer
TSH 0533 Steel plated washer
(2) TSH 0571 Long lock nipple 1-1/2"
TSH 0174 Surlock elbow

SP - 2

SP-2 Hub
SP-2 Bolt-On
SP-2 Band-On

Side Mounted Pedestrian Signal - 2 Face

Pole plate options (choose 1):

Hub style TSH 0098, 0099
designed for 6" diameter solid pole
Band-on (2) TSH 0150
Bolt-on TSH 0151 with cable guide
comes with TSH 0152

Includes:

(2) 12" nipples
(2) 16" nipples
TSH 0201 Standard tee
TSH 0204 Tee, serrated on outlet
TSH 0172 Standard elbow
TSH 0174 Surlock elbow
(2) TSH 0531 Neoprene washer
(2) TSH 0533 Steel plated washer
(4) TSH 0571 Long lock nipple 1-1/2"

SP - 1 - T

Side Mounted Pedestrian Signal - 1 Face with Terminal Compartment

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
TSH 0174 Surlock elbow
TSH 0173 Reamed elbow with set screws
TSH 0172 Standard elbow
TSH 0501 Short ornamental cap
(2) TSH 0571 Long lock nipple 1-1/2"
TSH 0531 Neoprene washer
TSH 0533 Steel plated washer
11-1/2" nipple
12" nipple
9-1/4" center pipe

SP - 2 - T

Side Mounted Pedestrian Signal - 2 Face with Terminal Compartment

Includes:

TSH 0001 Terminal compartment
TSH 1101 Terminal compartment door
TSH 2028 Terminal compartment gasket
TSH 0567 Terminal block with wiring
(2) TSH 0174 Surlock elbow
(2) TSH 0172 Standard elbow
TSH 0202 Reamed tee with set screws
(4) TSH 0571 Long lock nipple 1-1/2"
(2) TSH 0531 Neoprene washer
(2) TSH 0533 Steel plated washer
(2) 11-1/2" nipple
(2) 12" nipple
9-1/4" center pipe

Catalog Items: Mounting Assemblies

All colors available.

Materials: aluminum, bronze, iron, galvanized iron

Screws and fasteners are available in zinc or stainless steel.

Standard and custom sizes for nipples.

MAT

MAT-Cluster

MAS

MAS-5 SEC Cluster

Mast Arm Clevis Mount

SV-1

SV-1 Hub

SV-1 Band On

SV-1 Bolt-On

SV-2A

SV-2 Hub

SV-2 Band-On

SV-2 Bolt-On

SV-1-TA

SV-2-TA

SV-2-TB

SV-2-TC

SV-2-TD

SV-3-TA

SV-3-TB

SV-3-TC

SV-4-TA

SV-4-TB

SV-4-TC

USV-1-T

USV-2-T

SP - 1

SP-1 Hub

SP-1 Band-On

SP-1 Bolt-On

SP - 2

SP-2 Hub

SP-2 Bolt-On

SP-2 Band-On

SP - 1 - T

SP - 2 - T

Thank you, we appreciate your business.

(909) 623-4556
